Crusher copper sleeve

Characteristics and Applications

The product is environmentally friendly and recoverable copper sleeve. This product is based on excellent electrolytic copper, matches tin ingot and lead ingot in proportion to national standard. It has strong wear resistance and self lubrication. It can show excellent flexibility under the load of high speed rotating and swaying motion. It is the first choice for high speed operating machinery.

Detailed parameters

Product Name: high lead eccentric copper sleeve

Material brand: ZQPbD10-10

Casting mode: centrifugal casting

Products: large copper bushing, eccentric copper bushing, flange copper bushing.

Comprehensive introduction

Material name: cast copper alloy 10-10 high lead tin bronze

Brand name: ZCuPb10Sn10

Standard: GB/T 1176-1987

Chemical composition:

  Copper Cu: the rest

Tin Sn:9.0 ~ 11

Zinc Zn: less than 2 (not included in the sum of impurities)

Lead Pb:8.0 ~ 11

Phosphorus P: less than 0.05 (impurity)

Nickel Ni: less than 2 (not included in the sum of impurities)

Aluminum Al: less than 0.01 (impurity)

Iron Fe: less than 0.25 (impurity)

Manganese Mn: less than 0.2 (impurity)

Silicon Si: less than 0.01 (impurity)

Antimony Sb: less than 0.5 (impurity)

Sulfur S: less than 0.10 (impurity)

Note: the total amount of impurities is less than 1

Mechanical properties:

Tensile strength sigma B (MPa): > 220

Yield strength (MPa): > 140

Elongation of delta 5 (%): > 5

Hardness: > 685HB (reference value)

Heat treatment specification: pouring temperature is 1000~1100.

Casting method: centrifugal metal casting

Field of application

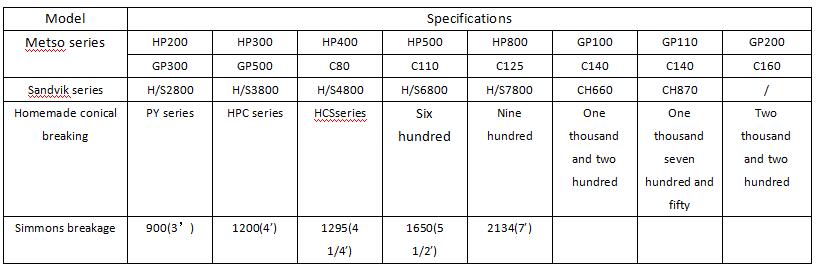

                                                                        Application of crusher type and specification field
