High lead tin bronze sleeve

Category: Copper sleeve for mining machinery

Description:

Hotline:086-373-6615898

Details

Characteristics and Applications


High lead tin bronze sleeve, wear-resistant self-lubricating copper sleeve, environmental protection recyclable copper sleeve. This product is based on excellent electrolytic copper as the base, matching the tin ingots and lead ingots according to the national standard ratio. In the absence of lubricants and water lubricants, it exhibits excellent sliding and self lubricating properties. Under the load of high speed rotation and rolling motion, the impact resistance is 50MPa, showing excellent flexibility. It is the first choice for high-speed running machinery.


detailed parameters

●Product Name: crusher high lead copper sleeve

●Material brand: ZQPbD15-8

●Casting mode: centrifugal casting

●Product categories: large copper sleeves, flanged bushes


Comprehensive introduction


●Material name: Casting 15-8 high lead tin bronze

●Brand name: ZCuPb15Sn8

●Standard: GB/T 1176-1987

●Chemical composition:

Copper Cu: the rest

Tin Sn:7.0 ~ 9

Zinc Zn: less than 2 (not included in the sum of impurities)

Lead Pb:13.0 ~ 17

Phosphorus P: less than 0.10 (impurity)

Nickel Ni: less than 2 (not included in the sum of impurities)

Aluminum Al: less than 0.01 (impurity)

Iron Fe: less than 0.25 (impurity)

Manganese Mn: less than 0.2 (impurity)

Silicon Si: less than 0.01 (impurity)

Antimony Sb: less than 0.5 (impurity)

Sulfur S: less than 0.10 (impurity)

Note: the total amount of impurities is less than 1

●Mechanical properties:

Tensile strength sigma B (MPa): > 200

Yield strength (MPa): > 100

Elongation of delta 5 (%): > 6

Hardness: > 635HB (reference value)




●Heat treatment specification: heating temperature is 1200~1250 C; pouring temperature is 1150~1200 C.

●Casting method: centrifugal metal casting


Field of application

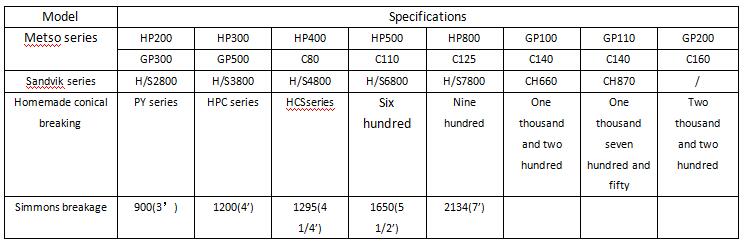

                                                                        Application of crusher type and specification field
