Large lengthened copper sleeve, wear-resistant self-lubricating copper sleeve, environmentally friendly recyclable copper sleeve. Using excellent electrolytic copper as matrix, tin ingot and lead ingot are mixed according to the national standard proportion to form high wear-resistant self-lubricating copper alloy material. In the absence of lubricants and water lubricants, it exhibits excellent sliding and self-lubricating properties. Under the load of high-speed rotation and rocking motion, the impact load is up to40MPaIt shows excellent flexibility and is the first choice for medium and low speed operation machinery.

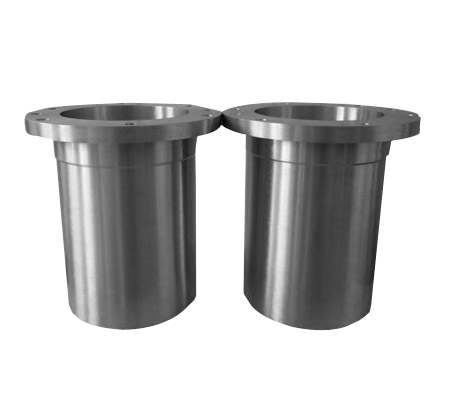

Product Name: large lengthened copper sleeve
Casting mode: centrifugal casting
Product Type: Large Extended Copper Sleeve, Flange Bushing
●Material name: Casting6-6-3Tin bronze
Copper Cu: the rest
Sn: 5.0-7.0 Zn: 5.0-7.0 Pb: 2.0-4.0
Phosphorus P: less than 0.05 (impurity)
Ni: < 2.5 (excluding impurities) Al: < 0.01 (impurities) Fe: < 0.3 (impurities)
Si: < 0.01 (impurity) Sb: < 0.25 (impurity)
Sulfur S: less than 0.10 (impurity) injection: the sum of impurities is less than 1
tensile strengthSigma B (MPa)：More than 200Yield strengthSigma (MPa)：More than 100elongationDelta 5 (%)：More than 6hardness ：More than 635HB (reference value)
●Heat treatment specification: heating temperatureOne thousand and two hundred～One thousand two hundred and fiftyCentigrade; pouring temperatureOne thousand one hundred and fifty～One thousand and two hundredCentigrade.
●Casting method: centrifugal metal casting
