​Crusher copper thrust plate

Category: Copper sleeve for mining machinery

Description:

Hotline:086-373-6615898

Details

Crusher copper thrust plate, combined copper disc, environmentally friendly recyclable copper parts. This product is based on excellent electrolytic copper and matches tin ingot and lead ingot in proportion to national standard. It has strong wear resistance and self lubrication. It can show excellent flexibility under the load of high-speed rotating and swaying motion. It is the first choice for high speed machine equipment.



Product Name: crusher copper thrust disc

Material brand:ZQPbD10-10

Casting mode: centrifugal casting

Product category: thrust disc.Material Name: Cast Copper Alloy 10-10 High Lead Tin Bronze



Brand name: ZCuPb10Sn10

Standard: GB/T 1176-1987

Chemical composition: copper Cu: the rest

Tin Sn:9.0 ~ 11

Zinc Zn: < 2.0 (excluding total impurities) Lead Pb: 8.0-11.0

Phosphorus P: less than 0.05 (impurity)

Ni: < 2.0 (excluding the total impurities) Al: < 0.01 (impurities) Fe: < 0.25 (impurities) Mn: < 0.2 (impurities)

Si: < 0.01 (impurity) Sb: < 0.5 (impurity) S: < 0.10 (impurity) Note: total impurity < 1.0

Mechanical properties:

●力学性能:

Tensile strength sigma B (MPa): > 220 yield strength sigma (MPa): greater than 140 elongation [delta] 5 (%): > 5 hardness: > 685HB (reference value): heat treatment specification: pouring temperature is 1000~1100.

Casting method: centrifugal metal casting

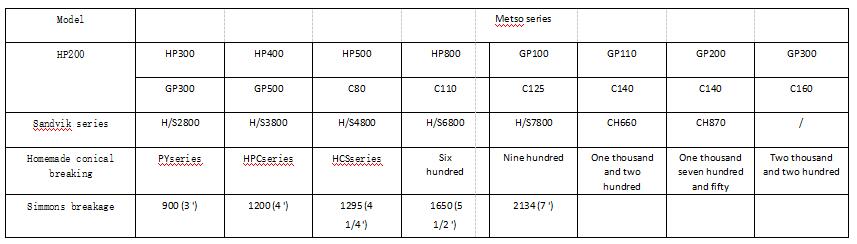

apply Crusher Model and specification field
