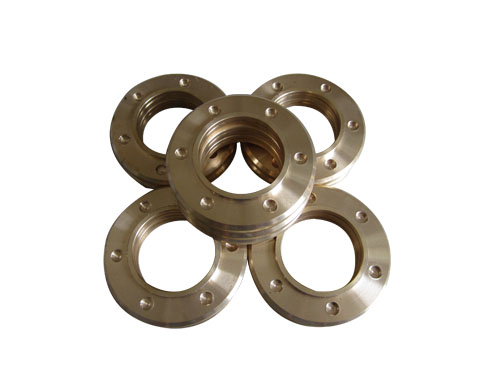

​Wear resistant copper oil seal

Category: Copper thrust washer




Wear resistant copper oil seal, environmental protection can be recycled copper oil seal. Using excellent electrolytic copper as the matrix, zinc ingot is mixed according to the national standard proportion to form wear-resistant copper alloy material. Ordinary brass, with good mechanical properties. This copper alloy has good mechanical properties,According to the different kinds of alloying elements contained in the material, it can be divided into ordinary brass and special brass. Ordinary brass is made of copper and zinc, which is called ordinary brass. Special brass consists of two or more elements of a variety of alloys called special brass, such as lead, tin, manganese, nickel, iron, silicon and other elements. In the machining of mechanical parts and parts of automation equipment, ordinary brass is usually used instead. Precision machined parts with special requirements also use special brass! Ultimately according to the mechanical equipment parts on the drawing process requirements processing!


Product Name: copper oil seal

Material brand:H62National standard brass

Casting mode: centrifugal casting

Product type: wear resistant copper oil seal Hardness copper oil seal


Chemical composition

Cu - 60.5 ~ 63.5%

Fe -- < < 0.15% Pb -- < 0.08%

Sb -- < < 0.005% Bi -- < 0.002%

P - < < 0.01%

Zn - remainder

Sum of impurities: less than 0.5%

Mechanical properties

Tensile strength: (_b_ 2_MPa) 410-630 elongation: (_10_ 2_ 3_) 10

Vickers hardness: (HV) 105-175 (thickness < 0.3) Note: thickness 0.3-10
